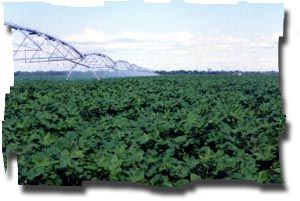

Pivot
Pivot
They're designed to obtain the best possible efficiency, with an important saving in water, energy and work.
They have a big variety of spays and low pressure sprinklers.
They adapt to ground and crops conditions and needs. In case of being necessary, it's possible to add drops, which permits sprinkling closes to the ground, reducing evaporation.
Driving pipeline, as the most important pieces of the structure, are made of galvanizated steel, to be protected against erosion.
The pipe line diameter is 6-5/8" (168 mm), with a 3,2 mm sprinklers. This diameter reduces charges lost and assures perfect structure stability.
It's available in five plots: 34,44 mts., 41,14 mts., 47,87 mts., 54,53 mts. and 61,01 mts., and also in four sizes of flying (salient) 6,7mts., 13,40 mts., 20,10 mts. and 26,80 mts.
This versatility permits to adapt the pivot's length to the field's dimension, to reduce the wheel's track and also the moving parts of the system.Laterals Canal:

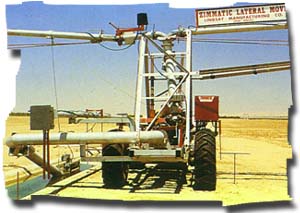

In flat fields, it's used concrete or earth canal, to give water to the lateral system.
There 's a diesel motor included, which operates a pump to give pressure to the water and a generator, which provides electricity to operate the system.Hose:
The lateral movement system, supplied by hose, allows to use this technology to irrigate, undulated fields. Water goes to a principal pressurised pipeline and across an ascending pipeline to a flexible hose which the system drags along the field.Multicenter MP 100

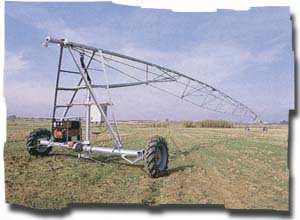

Made up of a simple movable center or auto propelled, equipead with on spark plug wheels; 4,5" plot, 60,62 mts., flying (salient) of 24,66 mts. and Nelson P-85 final sprinkler; irrigated radius 100 mts.
Minilateral ML 100 ML minilateral allows the machine to go from one surface to another, adapting it to the different shapes of the field; obtaining the maximum field exploitation.
This machine is made up of a socket module, cable guide, 4,5" plot, 60,62 mts., flying (salient) of 24,66 mts. and Nelson P-85 final sprinkler; irrigated width 100 mts.
